CNC combination machine: punching, forming and fibre-laser cutting

TRUMPF TruMatic 1000 fiber

Combination machine for 2500 × 1250 mm sheets: Delta Drive punching head with 165 kN and rotation of every tool, 3 kW fibre laser, and forming including thread forming M2.5–M10.

Variant: medium format (K07) Installed: 2025

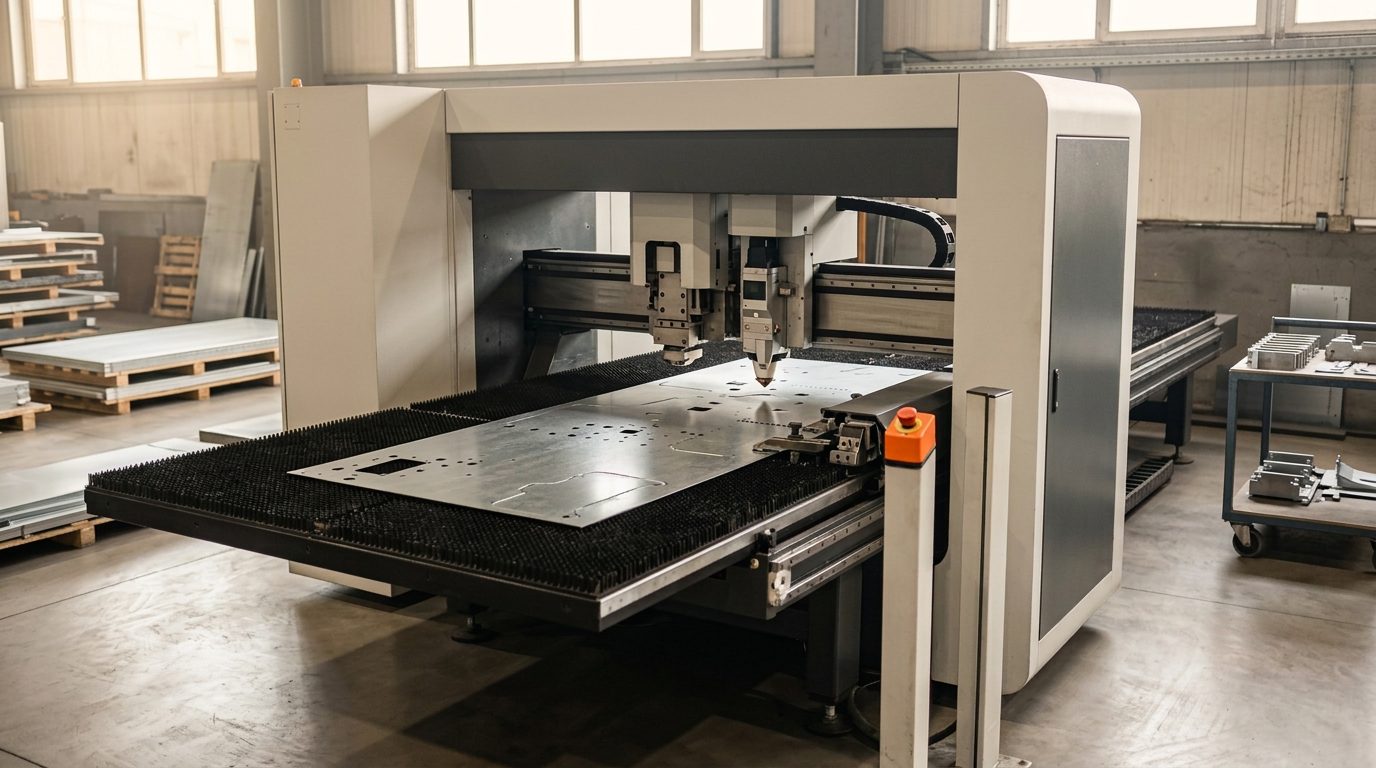

Punch-laser combination machine on the shop floor: the punching head next to the fibre-laser cutting head above a sheet with punched holes and cut contours, the sheet resting on brush tables and held by clamps

Identification

ParameterValue
Model TRUMPF TruMatic 1000 fiber, medium format 12
Machine code K07 23 to be confirmed The handover protocol reads K07_KS54; the documents do not explain the KS54 suffix.
Frame and axes closed welded frame, hybrid axis system 3
Commissioned 2025-09-04 1

Working range and sheet format

ParameterValue
Working range — punching (X × Y, no repositioning) 2500 × 1250 mm 3
Working range — laser (X × Y, no repositioning) 2500 × 1250 mm 3
Working range — combined mode (X × Y, no repositioning) 2035 × 1250 mm 3
Oversize sheets by repositioning, if no interfering contours 3
Max. sheet thickness (machine) 6.4 mm 3
Max. workpiece weight 150 kg 3

Laser

ParameterValue
Source TruFiber 3001, solid-state (fibre) laser 3 to be confirmed The scope of supply says TruFiber 3001, the technical data table is headed "TruDisk 3001". The 3000 W rating is the same either way.
Max. laser power 3000 W 3
Cutting unit universal for the full thickness range; FocusLine, ControlLine, PierceLine 3
Cutting gases oxygen, nitrogen, compressed air (option) 3
Laser die with brush insert yes — suitable for stainless and mild steel only 3

Max. laser cutting thickness by material

ParameterValue
Mild steel, oxygen 6 mm 3
Mild steel, nitrogen 6 mm 3
Stainless steel, nitrogen 6 mm 3
Aluminium, nitrogen 5 mm 3
Copper (gas as stated: oxygen) 6 mm 3 to be confirmed The document lists copper with oxygen; to be confirmed with TRUMPF.
Brass, nitrogen 6 mm 3

Punching and forming

ParameterValue
Max. punching force 165 kN 3
Punching head Delta Drive (electric drive), rotating mono tool holder, 360° rotation of every tool 3
Max. tool size — punching (enclosing circle) 76.2 mm 3
Max. tool size — forming (enclosing circle) 101.6 mm 3
Max. stroke rate — punching (E = 1 mm) 600 1/min 3
Max. stroke rate — marking 1000 1/min 3
C-axis speed (punching / thread forming) 180 / 180 1/min 3
Linear magazine (places for clamps and tools) 20 3
Tools with MultiTool / clamps 17–170 / 3 3
Clamps 3 hydraulic + 1 additional clamp (option) 3
Tool change time (single / MultiTool) 3.2 / 2.4 s 3
Thread forming M2.5–M10, with counter and breakage check; into extrusions and solid material; steel, stainless, aluminium 34
MultiBend (short bends) width max. 55 mm, leg 25 mm, angle max. 90° 3 to be confirmed The document states the leg both as "min. 25 mm" and "max. 25 mm".
Other purchased functions MultiTool, engraving and marking, deburring and roller technology, ejector pins for small parts, Smart Punch Monitoring, Dot Matrix Code, sheet bulge detection 3

Accuracy and axis speeds

ParameterValue
Position deviation Pa ± 0.1 mm 3
Position scatter Ps ± 0.03 mm 3
Smallest programmable path 0.001 mm 3
Axis speed X / Y / simultaneous 80 / 60 / 100 m/min 3

Part removal

ParameterValue
Part flap (laser), max. part W × L 600 × 400 mm 3
Flap size X × Y 400 × 1250 mm 3
Part chute (punching), max. part 180 × 180 mm 3
Sensors part flap and part chute sensors 3
Tables brush tables with loading and unloading aid 3

Control

ParameterValue
Control system TRUMPF, based on Rexroth IndraMotion MTX, Touchpoint 3
Display touch, 21.5" 3 to be confirmed The scope of supply says a 19" screen, the technical data table 21.5".
Programming TruTops Boost (TruMatic 1000 machine package) 3

Dimensions and connections

ParameterValue
Dimensions W × D × H (approx.) 6935 × 6281 × 2330 mm 3
Mass incl. all units 13,200 kg 3
Compressed air max. (static) 7 / 14 bar 3
Extraction compact dust extractor 3

Data sources

Every value in the tables points by number to the document it comes from. Prices, serial numbers and personal data are not published.

  1. TCZ_Acceptance_Protocol_ver10_cz_292831ef274f4b3fa72f559dba122ef3.pdf · 2025-09-04 TRUMPF handover/acceptance protocol: TruMatic 1000 fiber (K07_KS54) installed and commissioned.
  2. faktura_vydaná_121177985.pdf · 2025-09-15 Final TRUMPF invoice for the TruMatic 1000 fiber medium format (K07) under the purchase contract of 2025-07-10; date of supply 2025-09-04.
  3. Příloha č. 4 - TruMatic 1000 fiber střední formát.pdf · undated (2025) Technical and commercial specification of the TruMatic 1000 fiber medium format (K07): scope, options and technical data. Its total equals the final invoice.
  4. report_8053805_A2111D0064.pdf · 2025-09-05 TRUMPF service report from operator training: laser and punching operation, forming and threading tools used in production.

What the documents do not state

  • Max. laser cutting thickness for galvanised sheet (not in the documents).
  • Max. punching thickness per material (the document only gives 6.4 mm for the machine; per-tool limits are in the punch catalogue).
